Lane fixed motor vehicle exhaust remote sensing monitoring system

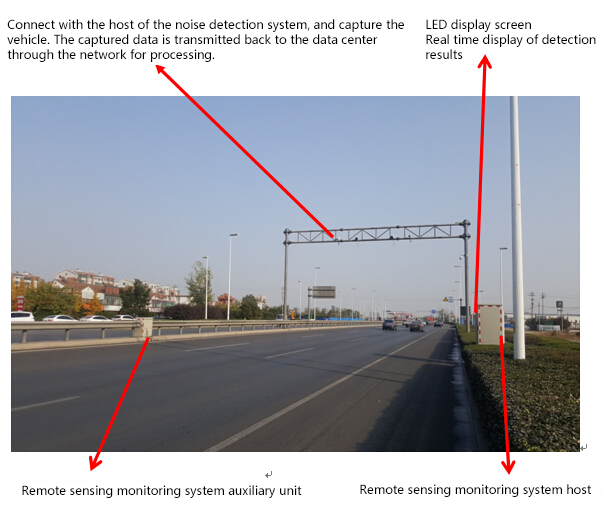

The system consists of a lane-fixed motor vehicle exhaust remote sensing monitoring system including:

Light source transmitter: built-in infrared and ultraviolet light sources.

Reflection system: placed in the auxiliary machine to receive the smoke group light source.

Exhaust gas analysis system: built-in infrared sensor, ultraviolet spectrometer.

It can fully identify and analyze various components such as CO, CO2, HC, NO, PM, etc.

Speed/acceleration detector: It can accurately calculate the driving status of the vehicle, thus providing a better basis for accurate determination of vehicle data.

Video capture system: high-definition camera, providing video basis for data analysis.

Weather meter: placed in the host computer, it can analyze the weather and transmit data to assist in exhaust gas analysis.

Control management system: placed in the host computer, setting system parameters and performing data processing and analysis.The system supports multi-point connections and can simultaneously connect transportation and environmental protection systems to implement data sharing and mutual transmission.

System technical parameters vehicle exhaust test:

Test items:

carbon monoxide (CO), carbon dioxide (CO2), hydrocarbons (HC), nitric oxide (NO), dispersive ultraviolet light (DUV), opaque smoke, PM2.5 .

Measuring range: CO: 0-10.0 percent; CO2: 0-16.0 percent; HC: 0-10000ppm; NO: 0-10000ppm, opacity: 0~100; PM2.5: 0~500 ; Smoke factor: 0-50

Test accuracy:

CO2: ±10%/±0.25% of value

CO: ±10%/±0.25% of value

C3H8: ±10%/value ±250×10-6

NO: ±10%/±250×10-6 of value

Opacity: ±5%/PM2.5: ±10-6%

Smoke factor: ±5%/±0.1 of the value

 Working performance: When the car is accelerating, the tail pipe is rear-mounted or under intermediate conditions, the capture rate is greater than 95%, CO, CO2, HC, NO, opaque smoke ,

Smoke factor, PM2.5 detection data repeatability deviation: ±4%, measurement trigger method adopts smoke trigger and light cut trigger

Detection range: 3-120km/h Measurement analysis time: ≤0.5S'

Vehicle speed detection error :＜1.0KM/h

Acceleration detection error:＜0.2m/S2
