Big Data Traffic Signal Control Platform

The big data traffic control platform is a new generation intelligent control platform launched by our company based on big data technology.

It is an advanced and intelligent road traffic management system that "grasps the current situation, identifies patterns, scientifically guides, and effectively commands".

It can exchange real-time road conditions through the Internet, change control plans in real time, and solve sudden traffic congestion problems.

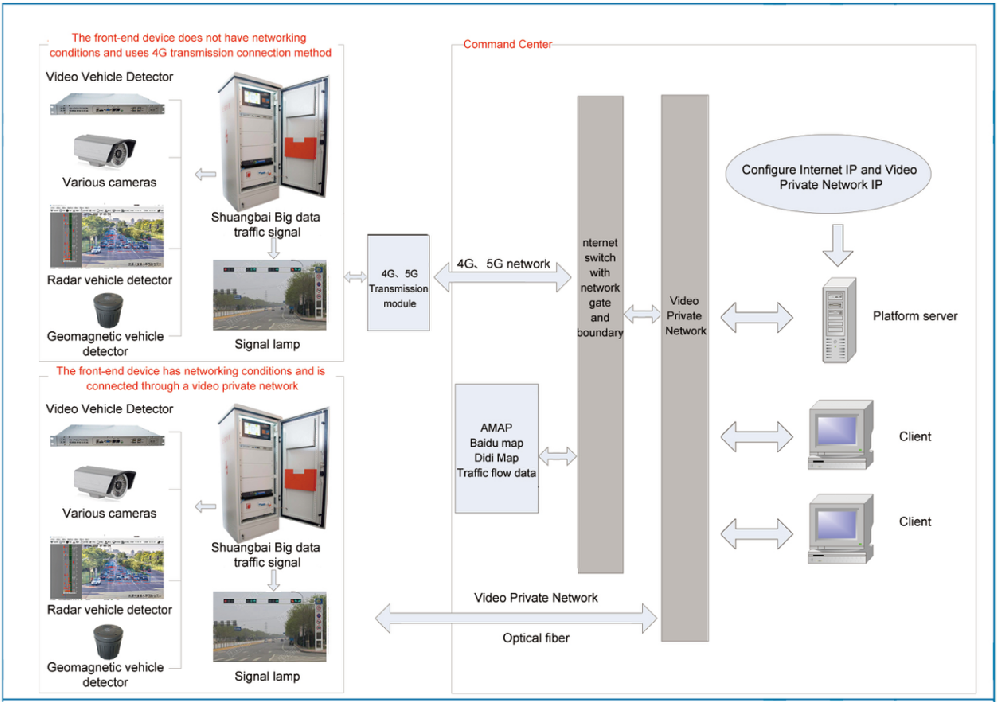

By using video vehicle detectors and existing cameras at intersections, vehicle information can be collected to achieve traffic analysis and sensing control at intersections.

Platform advantages

1. Real time road data can be exchanged with Baidu and Gaode through the internet to change control schemes in real time and solve sudden traffic congestion problems.

2. It is possible to randomly collect traffic flow from a location covered by a surveillance camera for traffic statistics and analysis, without the need to install a separate camera.

3. Equipped with short message alarm function, when there is a power outage or malfunction at the intersection, the fault information is automatically sent to the mobile phone, achieving precise management.

4. Bus (BRT) priority, train priority, and light rail priority; The longitude and latitude recognition function automatically locates the physical coordinates of the signal machine.

5. Able to achieve bidirectional green wave zone and induction green wave zone by calculating intersection spacing and operating speed.

6. There is a variable electronic sign output control function, which can achieve multi period control.

7. Equipped with guidance information output function, it can directly output and control the LED guidance information display screen.

8. Equipped with signal light brightness adjustment function, capable of controlling signal light brightness through 48 level brightness adjustment.

9. Can perform multiple modes of security tasks: command center green wave remote control, remote control command, signal side panel step command, vehicle terminal priority, signal panel button one-step command, centralized and unified control, single intersection control, and central control (signal operation control status is displayed simultaneously with four monitoring screens).

10. Equipped with USB flash drive upgrade function, on-site upgrade embedded program, and import control scheme.

11. Equipped with APN remote communication function, supporting dual network port and dual platform communication function.

12. Equipped with asymmetric release function and overflow control function.

13. Equipped with simulation demonstration function.

14. It has the function of monitoring power outages and power supply alarms at intersections.

15. Capable of customizing functions according to customer needs.

Characteristics of Big Data Control Platform

1. About Intersections

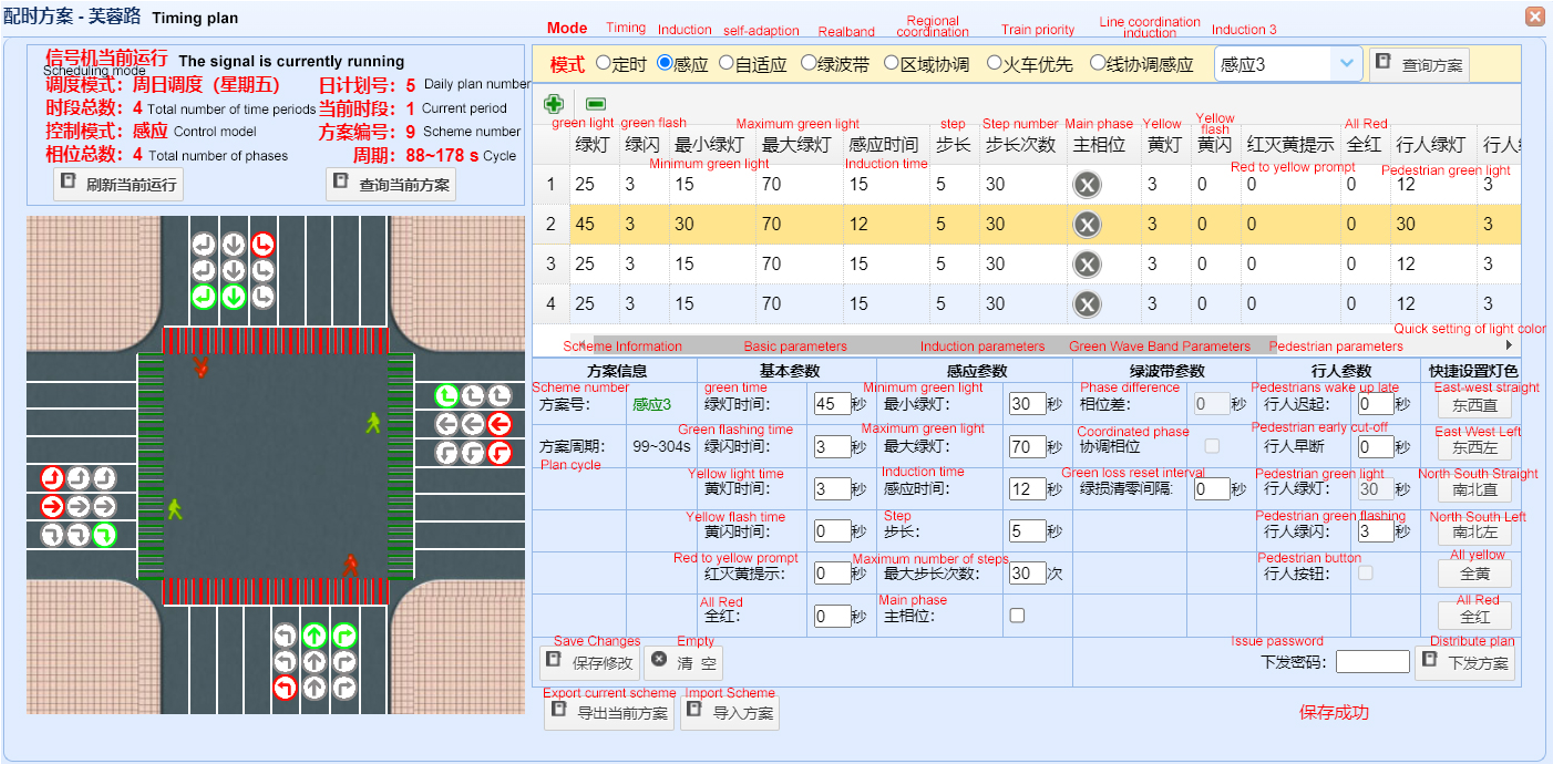

--Remote timing is relatively more intuitive and easy to operate.

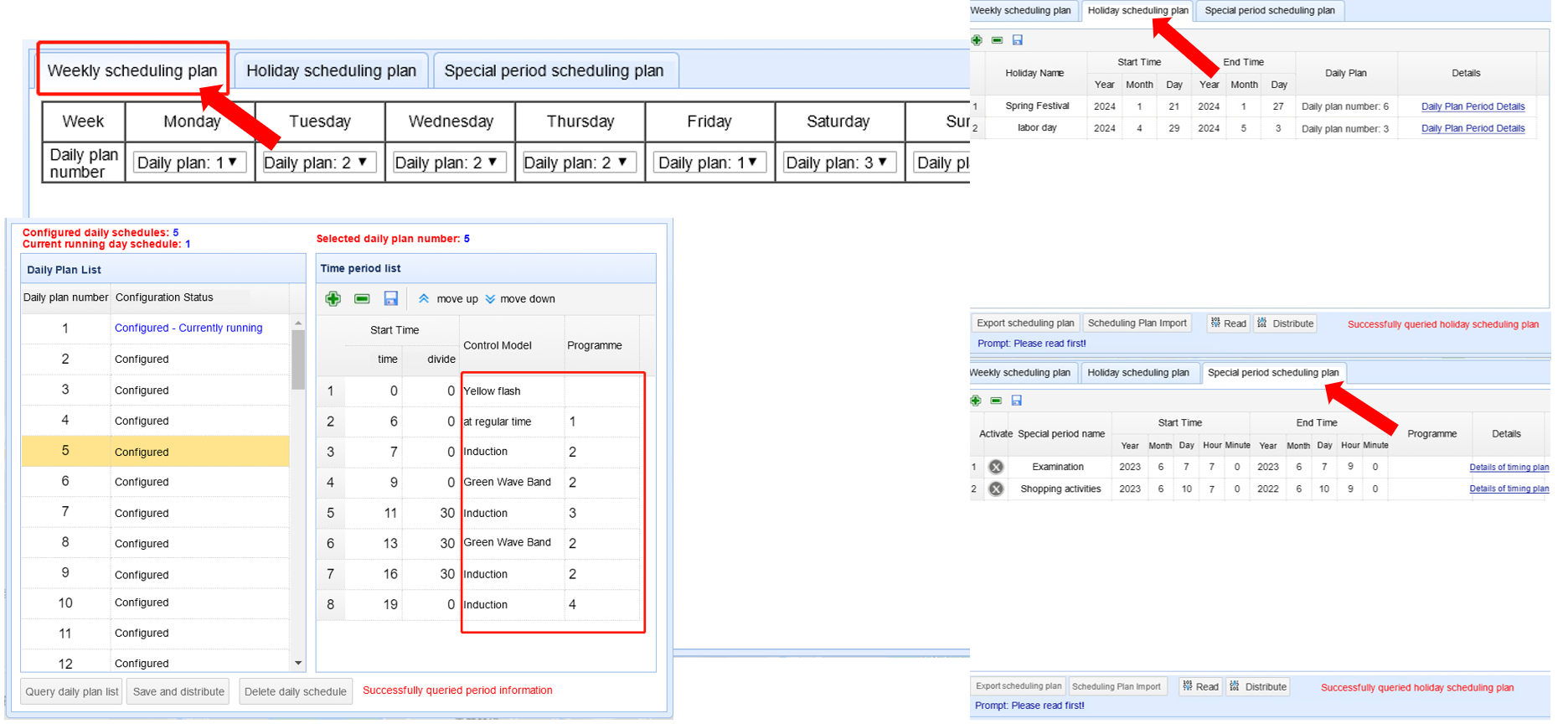

--Scheduling Plan Settings-Weekly scheduling plan, daily schedule

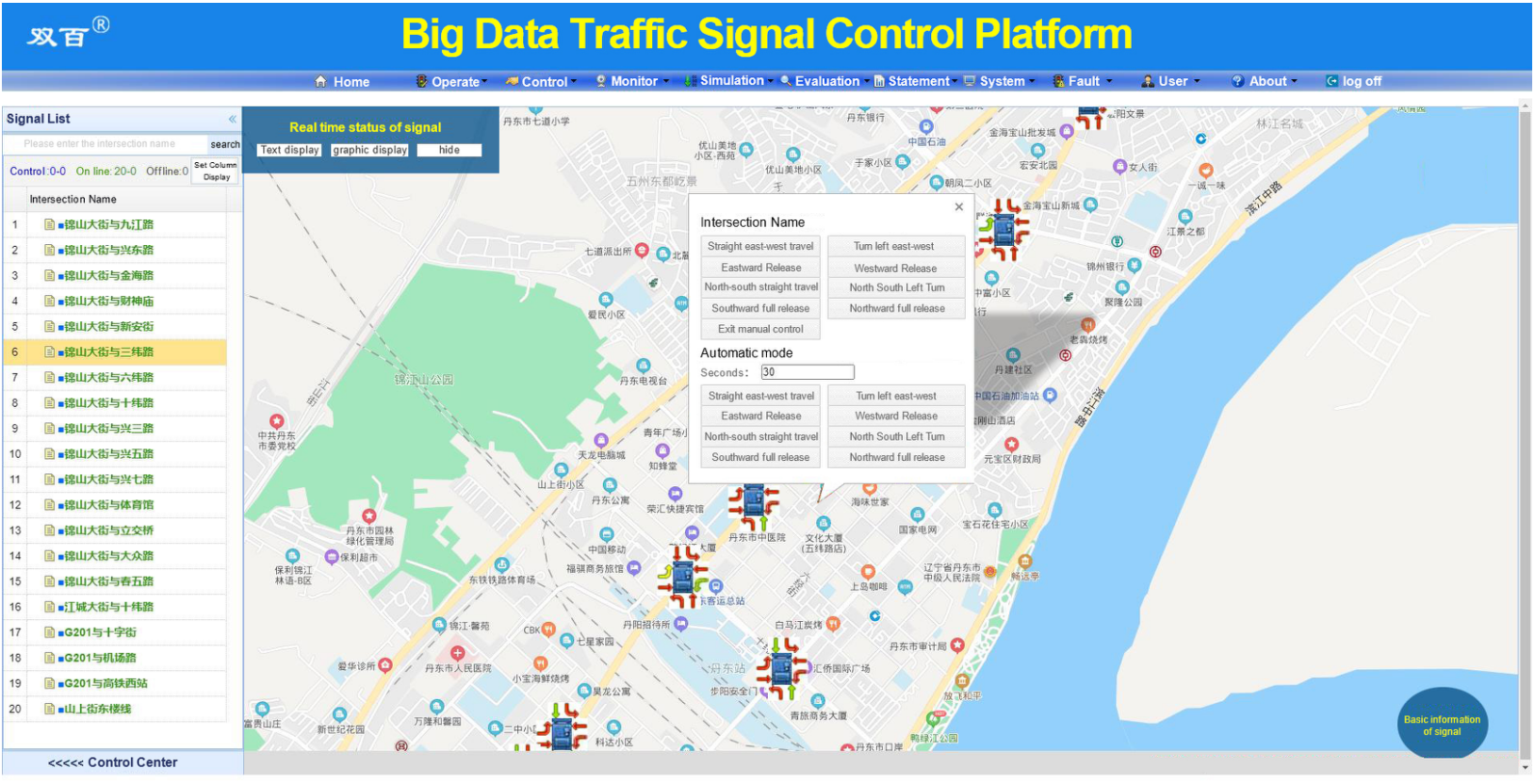

-- Multiple security task modes: Quick setting of map interface

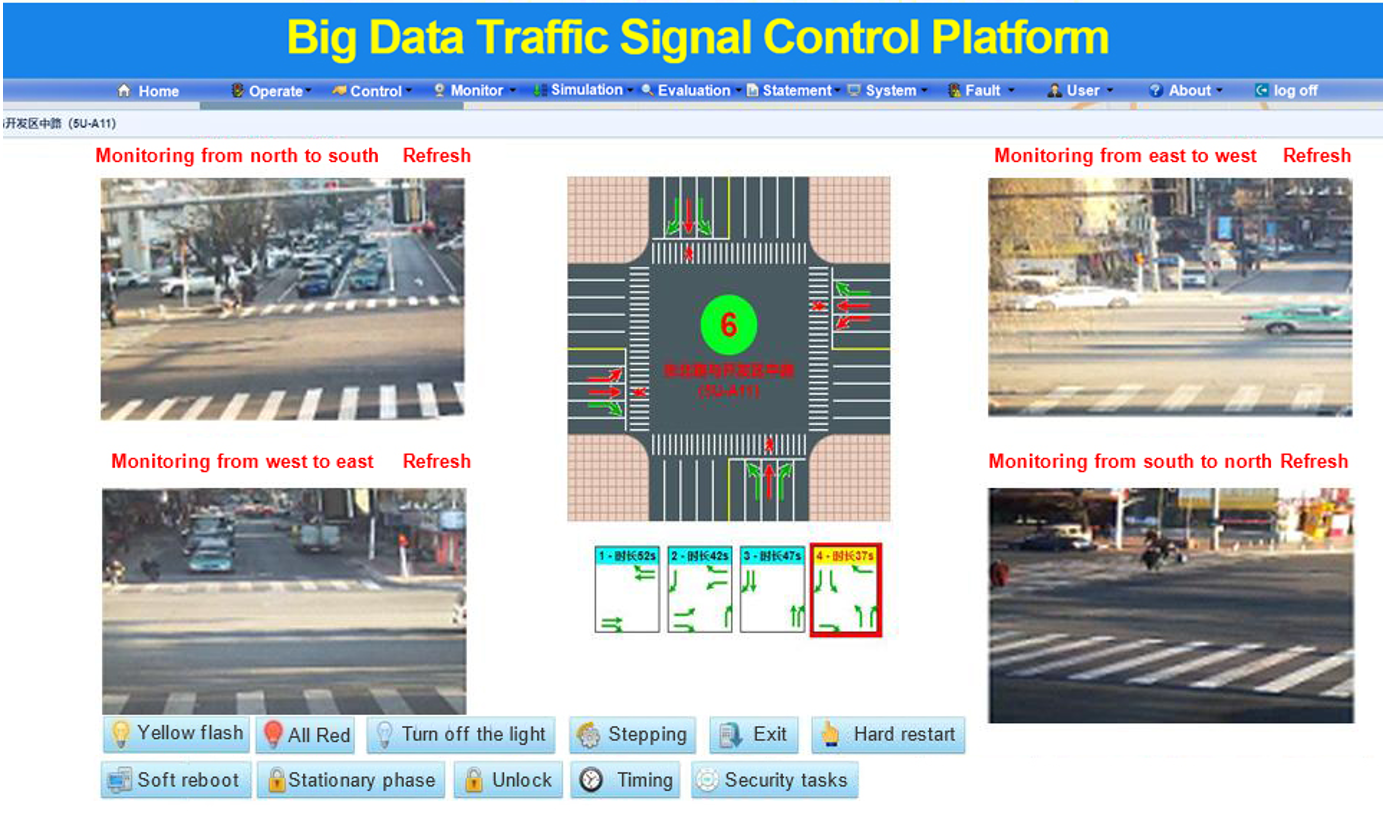

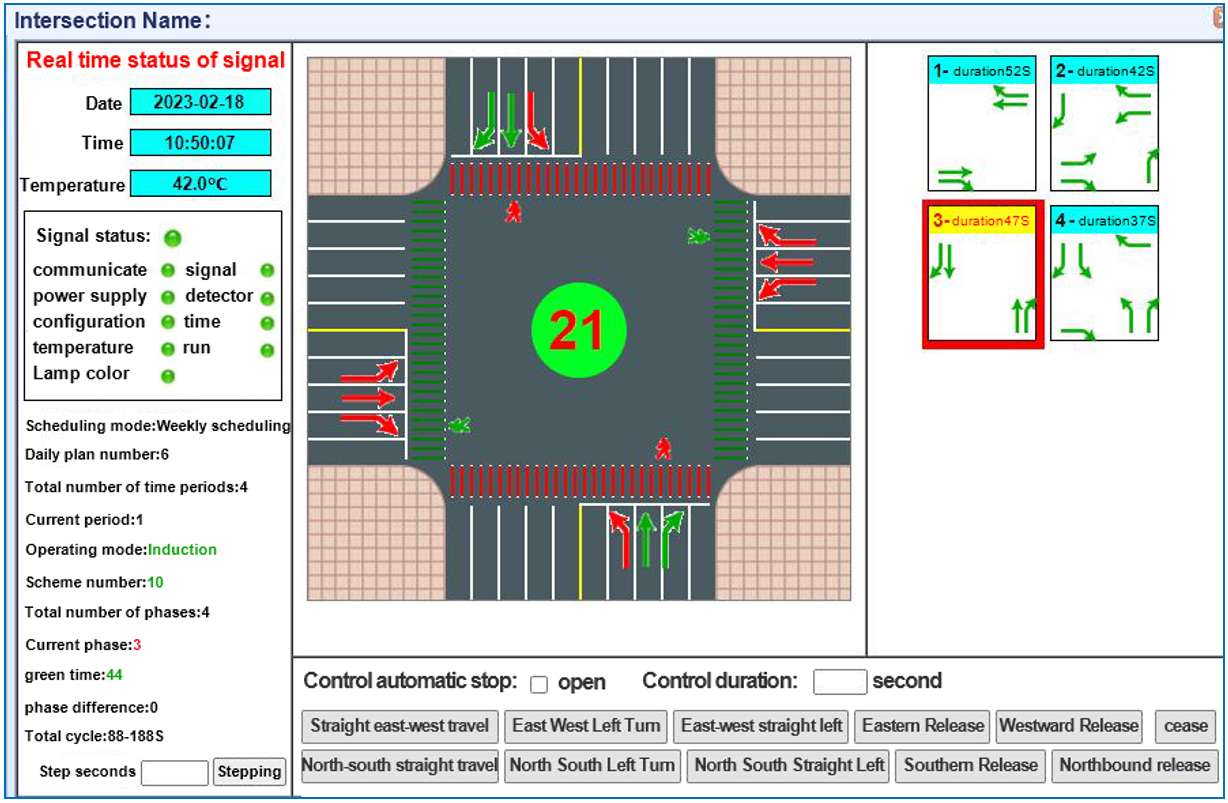

--Multiple security task modes: real-time status at a single intersection

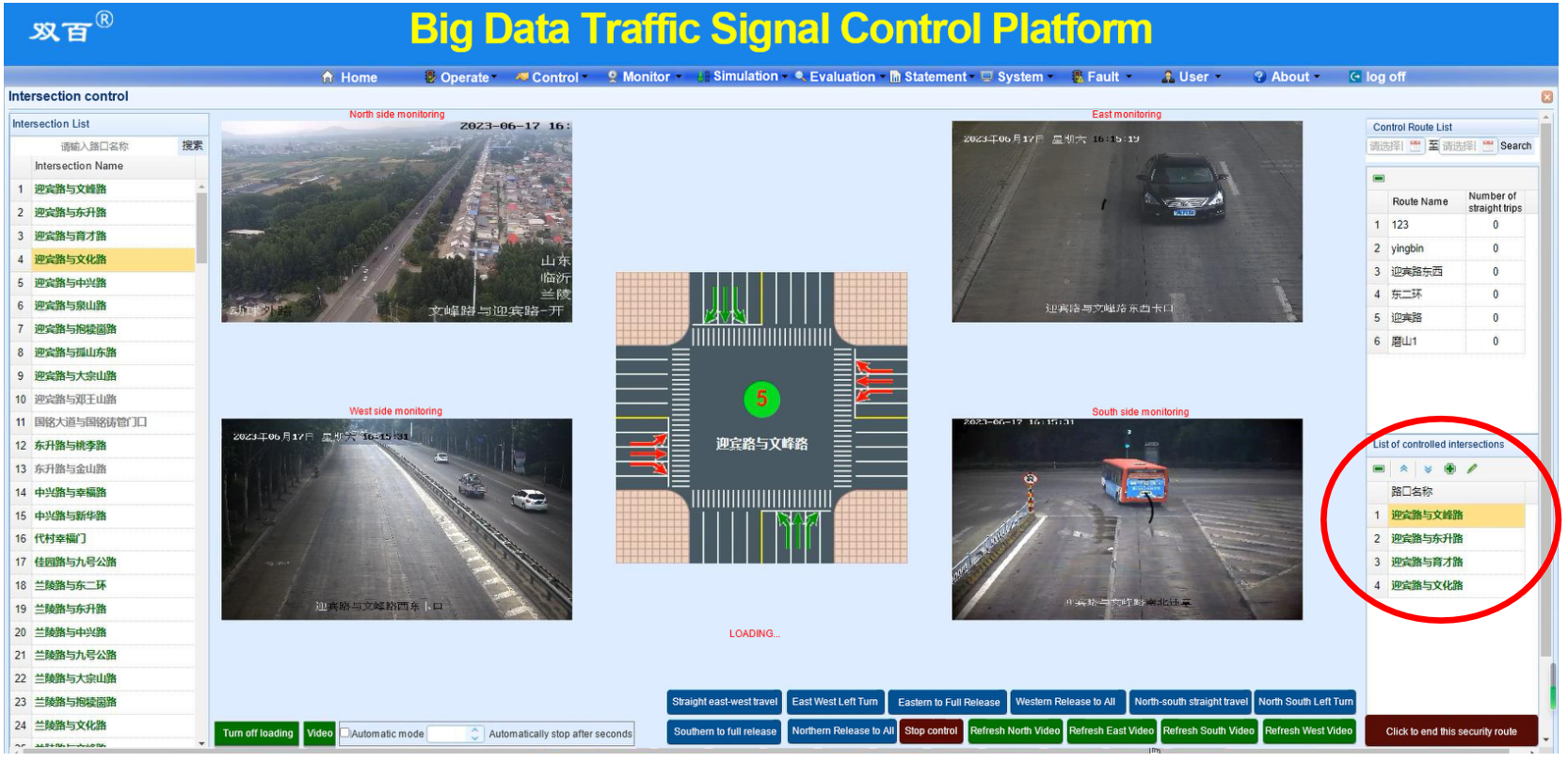

--Multiple security task modes: real-time status and monitoring on the same screen

--Multiple security task modes: centralized and unified control

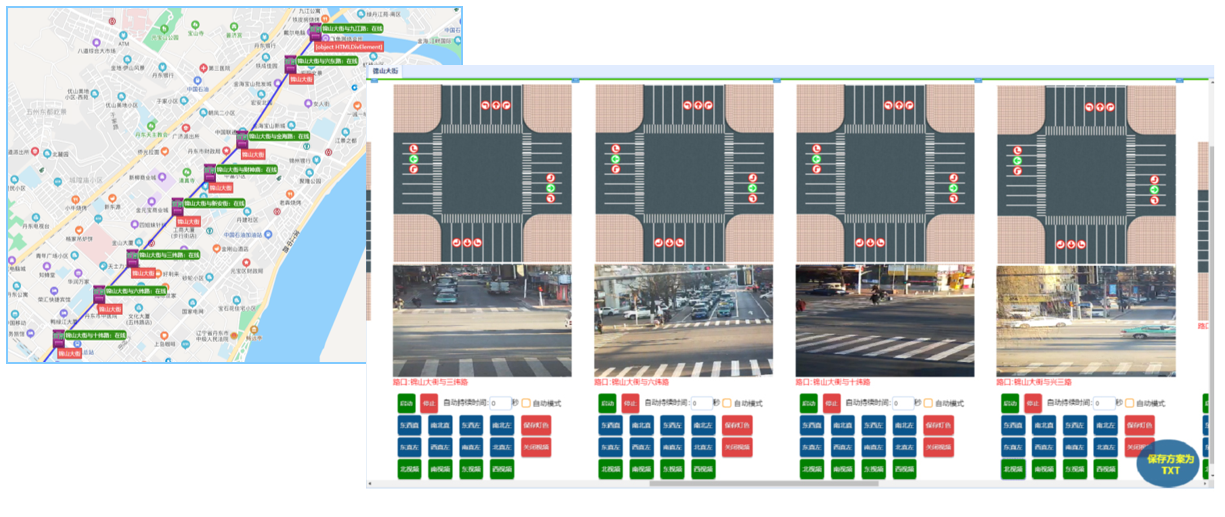

--Multiple security task modes: preset security routes

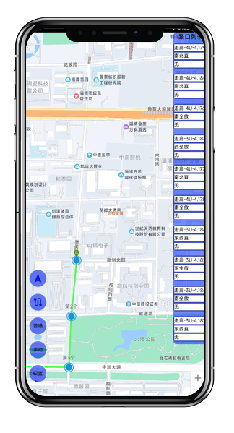

--Multiple security task modes: mobile app security task

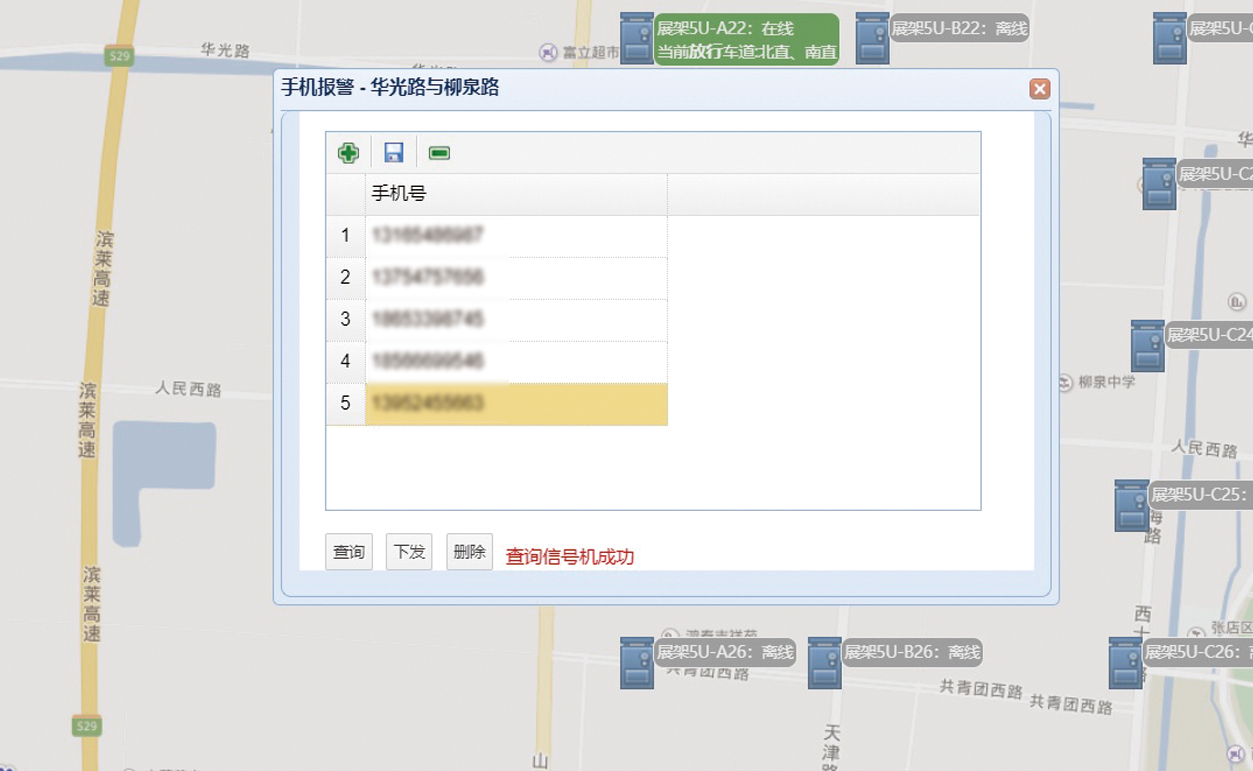

--SMS alarm function (can support sending SMS settings for more than 5 mobile phone numbers)

function

The center controls 9 security control methods for the security route, meeting the different operating habits of users.

Traffic flow analysis can divide the intersection into different time periods based on the statistical flow, and adjust the intersection plan to the optimal one based on the data.

Channel current and voltage monitoring monitors the current, voltage, power, total voltage, and leakage current of each channel in real-time.

Regional coordination controls the intersections within the designated area through regional coordination.

The user can customize the functional interface and customize the functional modules according to their needs.

The report function provides various data statistics report functions

The remote control management function can manage remote control personnel and collect remote control records.
